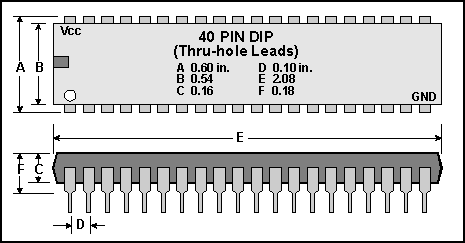

40-Pin DIP Dimensions
![[Package Dimensions]](gif/dip40dim.gif)
| Sym | Description | Inches | mm |
| A | Overall Width | 0.60 | 15.24 |
| B | Body Width | 0.54 | 13.72 |
| C | Body Height | 0.16 | 4.06 |
| D | Lead Spacing | 0.10 | 2.54 |
| E | Body Length | 2.08 | 52.83 |
| F | Mounted Height | 0.18 | 4.57 |
