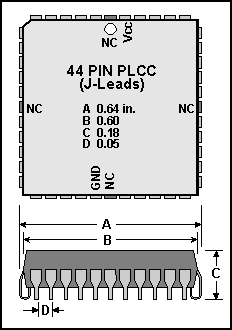

44-Pin PLCC Dimensions
![[PLCC Dimensions]](gif/plc44dim.gif)
| Sym | Description | Inches | mm |
| A | Overall Width | 0.64 | 16.26 |
| B | Body width | 0.60 | 15.24 |
| C | Overall height | 0.18 | 4.57 |
| D | Lead spacing | 0.05 | 1.27 |
| Legacy Part | Max reflow temperature 225°C |
| RoHS Part | Max reflow temperature 260°C |
