8051 to P-51 Applicaton Note

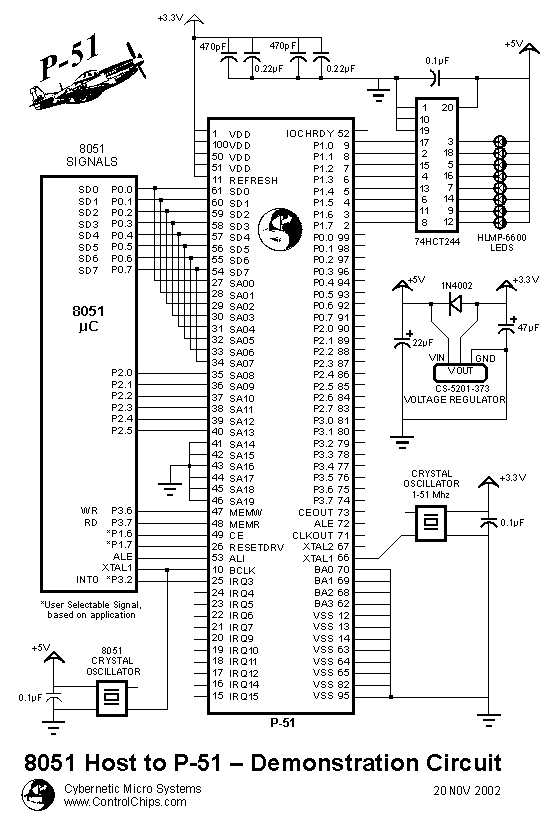

8051 Host to P-51 Demonstration Circuit
![[8051 circuit]](p51gif/p51_8051_schem.gif)

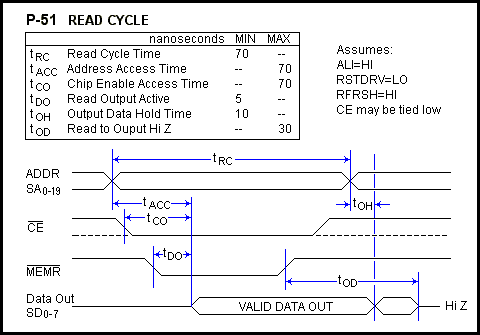

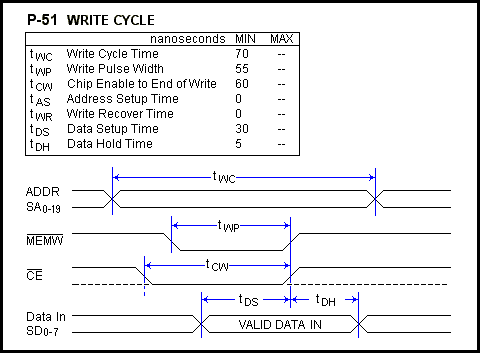

8051 to P-51 Handshake Timing
![[8051 RD timing]](p51gif/p51rdtim.gif)
![[8051 WR timing]](p51gif/p51wrtim.gif)
