CY327 Pinouts

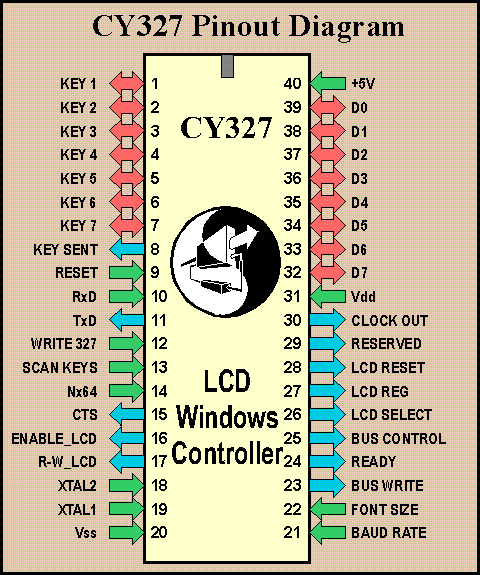

CY327 DIP Pinout

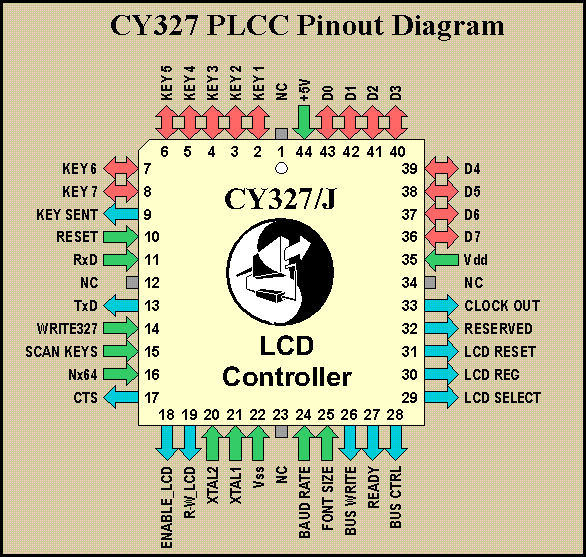

CY327/J PLCC Pinout

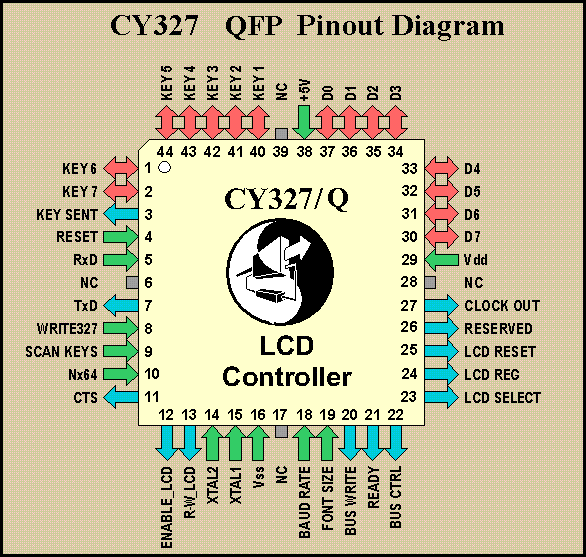

CY327/Q QFP Pinout*
Zoom In
|
Zoom In
| Zoom In
|
| CY327 Dip Pin# |
CY327/J PLCC Pin# |
CY327/Q QFP* Pin# |
Pin Name | I/O | Description |
| - | 1 | 39 | NC | no internal connection | |
| 1 | 2 | 40 | Key 1 | I/O | Soft Key or Matrix |
| 2 | 3 | 41 | Key 2 | I/O | Soft Key or Matrix |
| 3 | 4 | 42 | Key 3 | I/O | Soft Key or Matrix |
| 4 | 5 | 43 | Key 4 | I/O | Soft Key or Matrix |
| 5 | 6 | 44 | Key 5 | I/O | Soft Key or Matrix |
| 6 | 7 | 1 | Key 6 | I/O | Soft Key or Matrix |
| 7 | 8 | 2 | Key 7 | I/O | ASCII or 4x4 Matrix |
| 8 | 9 | 3 | Key Sent/ | O | SoftKey status, ASCII, or 4x4 Matrix |
| 9 | 10 | 4 | Reset | I | Resets CY327 when high |
| 10 | 11 | 5 | RxD | I | Received Serial Data line |
| - | 12 | 6 | NC | no internal connection | |
| 11 | 13 | 7 | TxD | O | Transmitted Serial Data Line |
| 12 | 14 | 8 | Write 327/ | I | Write parallel data strobe to CY327 |
| 13 | 15 | 9 | Scan Keys/ | I | Enable Key scan on Pins 1-6 |
| 14 | 16 | 10 | Nx64 | I | Select LCD height. Hi=64, Lo=128 |
| 15 | 17 | 11 | CTS/ | O | Clear-to-send serial data when low |
| 16 | 18 | 12 | Enable LCD | O | Enable strobe to LCD |
| 17 | 19 | 13 | R-W LCD | O | Read-Write Signal to LCD |
| 18 | 20 | 14 | Xtal2 | I | Crystal oscillator connection |
| 19 | 21 | 15 | Xtal1 | I | Crystal oscillator connection |
| 20 | 22 | 16 | Vss | I | Ground connection for CY327 |
| - | 23 | 17 | NC | no internal connection | |
| 21 | 24 | 18 | Baud Rate | I | Lo=2400, Hi=9600, Z=adaptive |
| 22 | 25 | 19 | Font Size | I | Lo=8x8, Hi=6x8 character font |
| 23 | 26 | 20 | Bus Write/ | O | CY327 wants to write data to bus |
| 24 | 27 | 21 | Ready | O | CY327 ready to accept data |
| 25 | 28 | 22 | Bus Ctrl/ | O | Enables data onto CY327/LCD data bus |
| 26 | 29 | 23 | LCD select/ | O | chip-selects HD61830 for data transfer |
| 27 | 30 | 24 | LCD reg | O | HD61830 register: Hi=Reg, Lo=Data |
| 28 | 31 | 25 | LCD reset | O | Drives HD61830 reset line |
| 29 | 32 | 26 | Reserved | O | do not connect |
| 30 | 33 | 27 | Clock Out | O | clock output, 1/6 crystal rate |
| - | 34 | 28 | NC | no internal connection | |
| 31 | 35 | 27 | Vdd | I | +5v |
| 32 | 36 | 30 | D 7 | I/O | Data Bus bit 7 (MSB) |
| 33 | 37 | 31 | D 6 | I/O | Data Bus bit 6 |
| 34 | 38 | 32 | D 5 | I/O | Data Bus bit 5 |
| 35 | 39 | 33 | D 4 | I/O | Data Bus bit 4 |
| 36 | 40 | 34 | D 3 | I/O | Data Bus bit 3 |
| 37 | 41 | 35 | D 2 | I/O | Data Bus bit 2 |
| 38 | 42 | 36 | D 1 | I/O | Data Bus bit 1 |
| 39 | 43 | 37 | D 0 | I/O | Data Bus bit 0 (LSB) |
| 40 | 44 | 38 | Vcc (+ 5V) | I | +5 volt power supply |
* QFP Notes:
- While the numbering scheme of the QFP pinout differs from the PLCC,
the physical location of functional pins will be identical on both packages.
- The QFP package is currently only available in 1000 quantity minimums.
